SPARTUS MAXIMUS 3D welding table 1200x800x100mm | D16 System | 4 standard legs L=750mm

SPARTUS MAXIMUS 3D welding table 1200x800x100mm | D16 System | 4 standard legs L=750mm

Artikelnummer: SP16N-12-08-750

2 236,00 €
2 236,00 €
Rea Tillfälligt slut
Inkl. moms. Frakt beräknas i kassan.
1 781,67 € exkl. moms
I lager
Leverans 5–15 arbetsdagar
  • Leverans till utlämningsställe eller företagLeveranstiden visas ovan
  • Faktura för företagskunderBeställ med FO-nummer
  • 14 dagars ångerrättFör konsumenter
  • Fråga innan du köperinfo@weldstore.fi
Visa alla uppgifter

Produktbeskrivning

Nitrided SPARTUS welding table – D16 system

The SPARTUS MAXIMUS D16 welding table is a solution designed for professional applications in the metalworking industry. Made of high-strength nitrided S355J2+N steel, and equipped with a Ø16 mm mounting hole system, it provides a solid and precise base for welding, assembly, and workshop operations.

Nitrided surface – durability that makes a difference

It is the nitrided surface of the SPARTUS MAXIMUS D16 table that sets it apart from the competition. Thanks to the nitriding process, the S355J2+N steel gains exceptional resistance to wear, corrosion, and high temperatures. Precision machining ensures a surface flatness accuracy of 0.1 mm/㎡, delivering a perfectly even work area – even under heavy loads. This solution guarantees full stability during part positioning and maximum welding accuracy – regardless of the size of the structure.

The 12–14 mm thick top offers an ideal balance between massiveness and precision. This well-chosen design ensures resistance to impacts, high temperatures, and deformation, maintaining perfect flatness for years of operation.

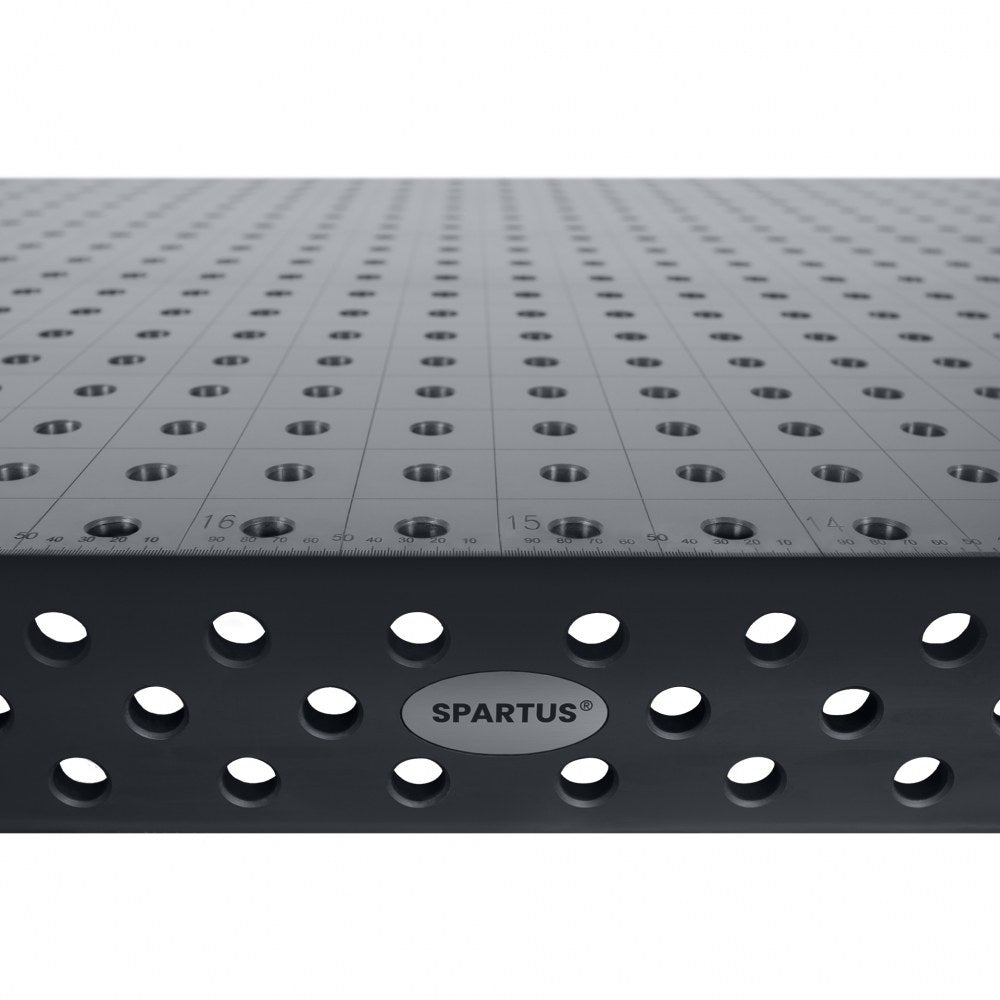

Drilled and milled Ø16 mm hole system

The working surface is equipped with precisely drilled and milled holes with a diameter of 16 mm, arranged in the regular D16 system layout. Each hole is made with an accuracy of +0.05 mm, and the hole spacing is 50 mm.
This high level of precision ensures full compatibility with system accessories and enables fast, repeatable, and stable clamping using clamps, angles, and stops.

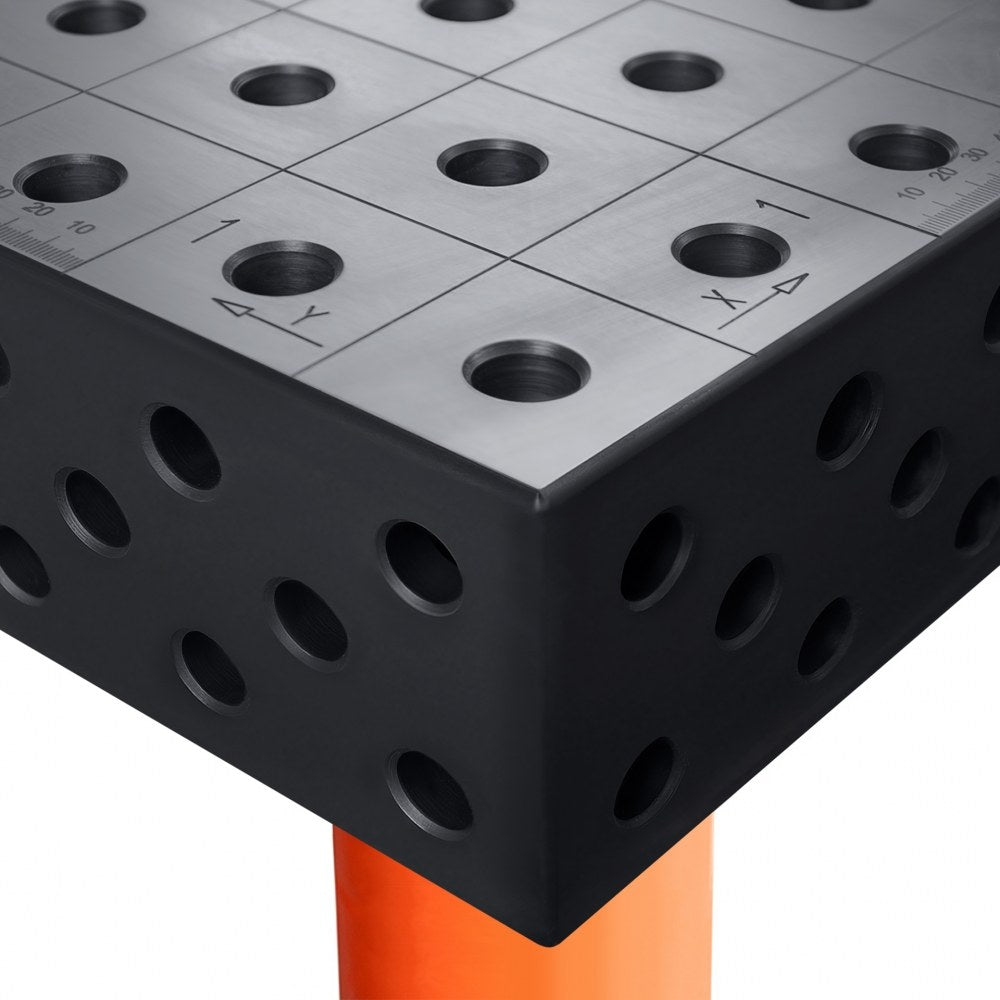

Millimeter scale – fast and accurate positioning

The working surface features a clear millimeter scale that makes it easier to precisely position workpieces and fixtures. This practical tool increases repeatability and shortens setup time.

Reinforced ribbing – maximum structural rigidity

Under the working surface of SPARTUS MAXIMUS tables lies a massive, precisely engineered ribbing system that significantly increases the rigidity of the entire structure. Densely distributed ribs eliminate the risk of deflection or deformation, ensuring tabletop stability even under heavy loads and during work with large steel components. The table maintains flatness of 0.1mm / 1000mm, meeting strict industrial standards. Such precision guarantees ideal conditions for positioning components with high geometric requirements.

3D modular side – flexible workstation configuration

The SPARTUS MAXIMUS D16 table is based on a 3D modular side system, which allows the working area to be expanded in any direction. This makes it easy to increase the workspace or adapt the table layout to the needs of a specific project – from precise components to large steel structures.



Applications of SPARTUS D16 welding tables

SPARTUS D16 welding tables are used in:

  • structural welding,
  • steel component assembly and machining,
  • production workshops,
  • assembly lines,
  • training and educational facilities.

SPARTUS D16 – the precision base for your work

By choosing a SPARTUS welding table in the D16 system, you invest in accuracy, durability, and reliability. It’s a solution that enhances every stage of the welding and assembly process, ensuring repeatability and the highest comfort of work.

Accessories for SPARTUS D16 welding tables

SPARTUS offers a wide range of accessories for D16 welding tables that allow you to fully utilize your workstation’s potential. We offer both individual components and complete accessory kits tailored to user needs. The range includes welding clamps, angle brackets, prisms, locating pins, sockets, stoppers, and clamping blocks – all compatible with the D16 hole system. With these accessories, you can easily and precisely secure workpieces, expand your working area, and increase accuracy and efficiency when working with the SPARTUS D16 table.
