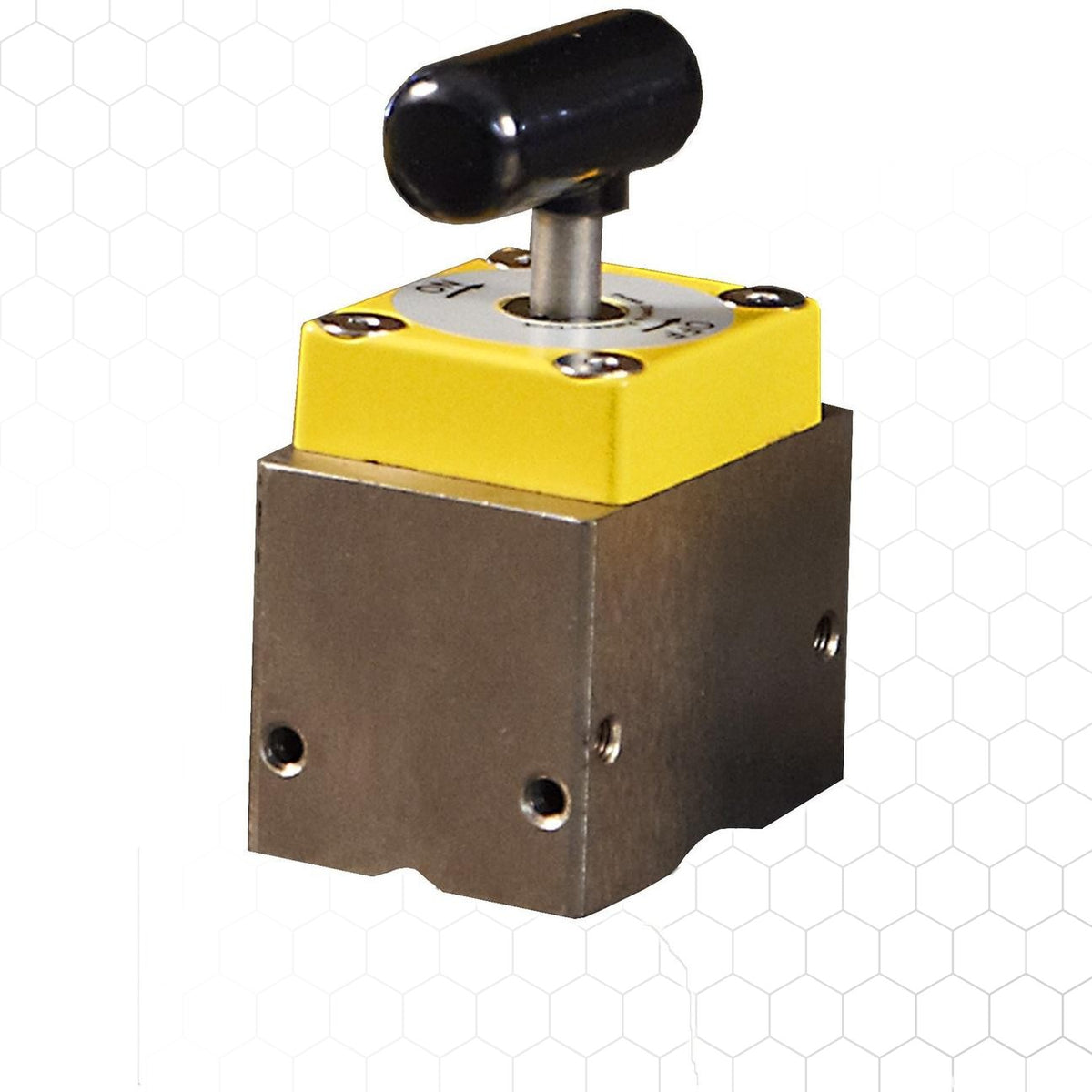

MagSquare 400 magnetic clamp 8100238

MagSquare 400 is an On/Off magnet with 182 kg holding force.

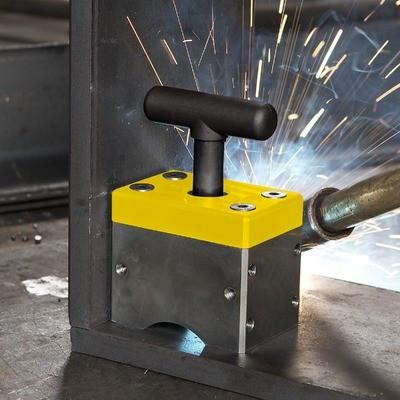

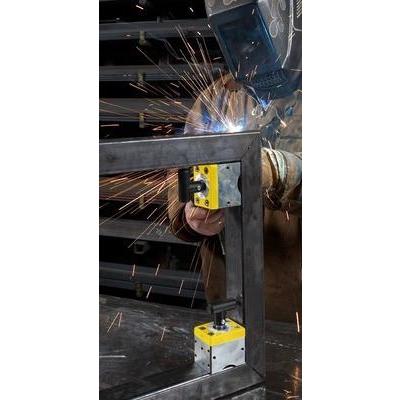

MagSquares offer a new, fast and easy-to-use way of holding work during steel assembly. The magnet lets you set the parts to be welded and assembled in the correct position.
FEATURES
On/Off Magswitch magnet control.
Precise placement, turns all the way off – stays clean.
Machined at 90 degrees.
Magnetic grip on 5 sides – strong on 3 sides.
Pipe notch – grips flat and pipe.
Super-fast set-ups and instant workholding.
On/Off control – no fighting the magnet for precise positioning.
Stays clean – when off, debris falls off.
Multi-plane workholding with hold force on all sides.
Create your own fabrication jigs by mounting in the M6 holes.
400 pounds of hold force lets you work on large steel.
Stays clean – unlike traditional magnetic squares that hold on to metal chips even when off, with Magswitch you won’t cut your fingers cleaning away steel debris.
SPECIFICATIONS
Max Breakaway: 400 lbs / 181 kg
Full Saturation Thickness: 0.25 in / 6 mm
2:1 Shear Working Load: 40 lbs / 18 kg
Product Weight: 2 lbs / 0.91 kg
Overall Height: 90 mm
Magnetic Pole Footprint: 64 mm x 41.26 mm
