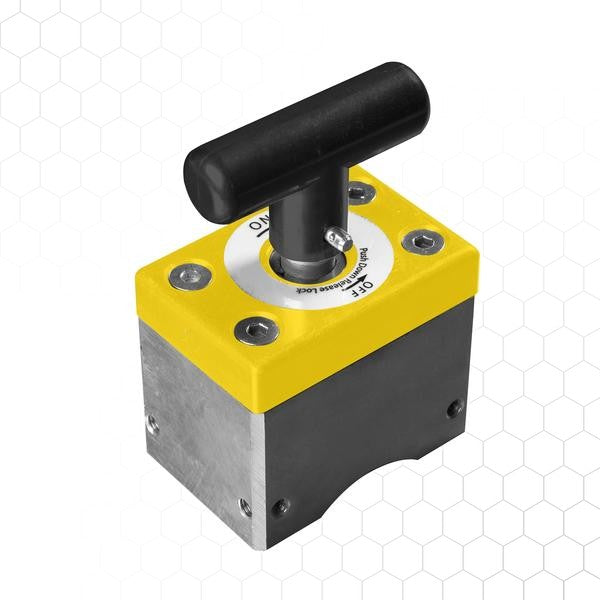

Magswitch MagSquare 600 magnetic clamp 8100106

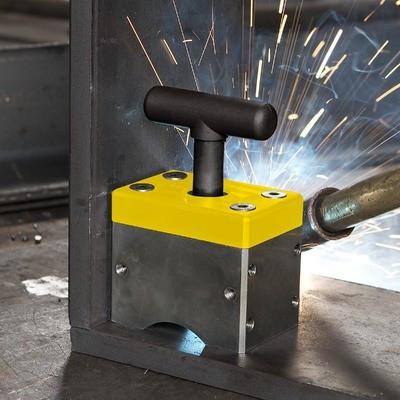

MagSquare 600 is an On/Off magnet with 245 kg holding force.

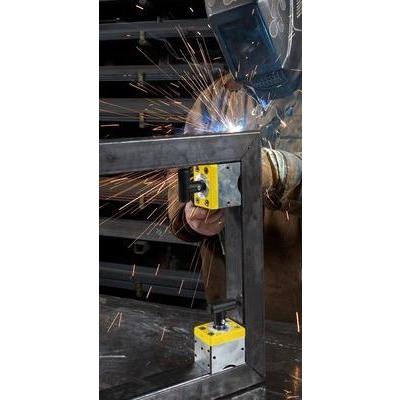

MagSquares offer a new, fast and easy-to-use way of holding work during steel assembly. The magnet lets you set the parts to be welded and assembled in the correct position.
FEATURES
On/Off Magswitch magnet control.
Precise placement, turns all the way off – stays clean.
Machined at 90 degrees.
Magnetic grip on 5 sides – strong on 3 sides.
Pipe notch – grips flat and pipe.
Super-fast set-ups and instant workholding.
On/Off control – no fighting the magnet for precise positioning.
Stays clean – when off, debris falls off.
Multi-plane workholding with hold force on all sides.
Create your own fabrication jigs by mounting in the M6 holes.
Stays clean – unlike traditional magnetic squares that hold on to metal chips even when off, with Magswitch you won’t cut your fingers cleaning away steel debris.
SPECIFICATIONS
Max Breakaway: 600 lbs / 272 kg
Full Saturation Thickness: 3/8” / 10 mm
2:1 Shear Working Load: 61 lbs / 27 kg
Product Weight: 3 lbs / 1.36 kg
Overall Height: 106 mm
Magnetic Pole Footprint: 75 mm x 51.5 mm
