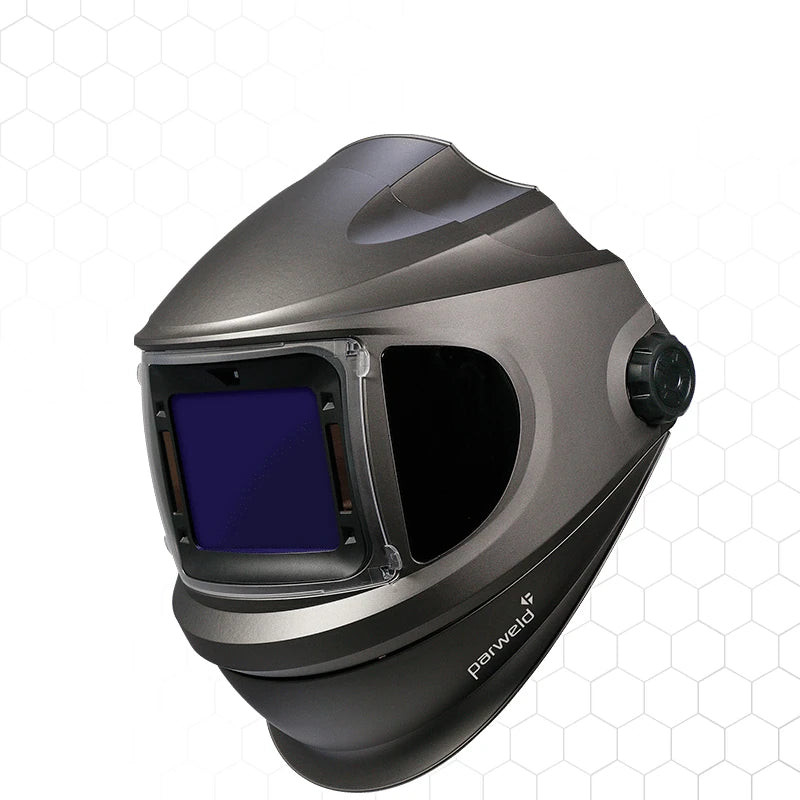

Parweld XR943H Flip auto-darkening helmet, DIN 4–13

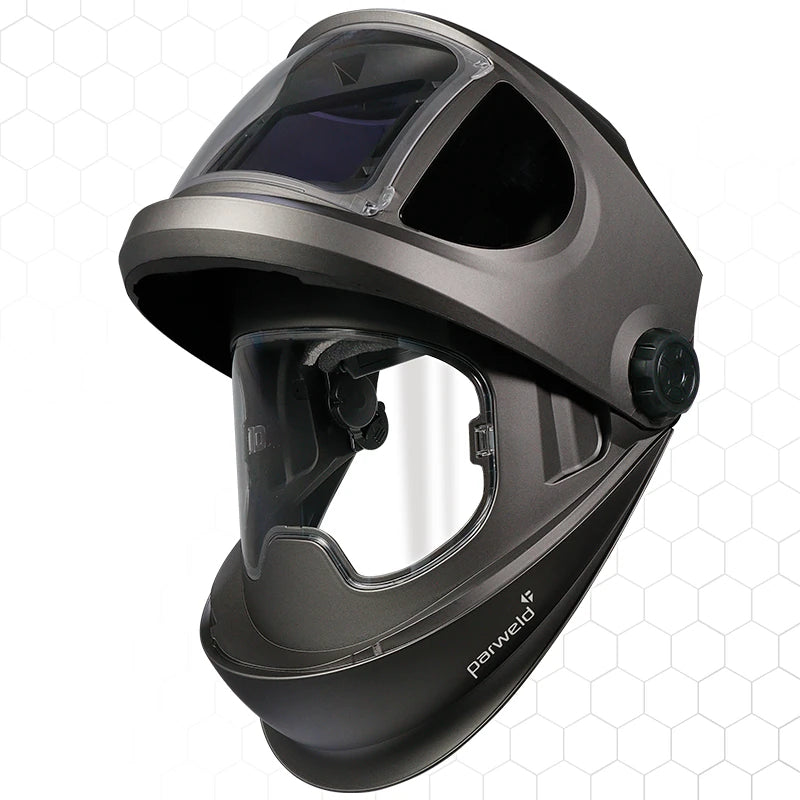

The Parweld XR943H is an auto-darkening welding and grinding helmet with a flip-up filter. With the filter raised, you can grind and inspect your work through the wide clear visor without removing the helmet. It suits TIG, MIG/MAG and MMA welding, plasma cutting and grinding.

Features

• Flip-up auto-darkening filter and wide clear grinding visor
• True Colour auto-darkening filter, optical class 1/1/1/1
• LCD display and external controls: shade, sensitivity and dark-to-light delay are adjustable
• Modes: weld, cut, grind, auto shade and high-speed tack (TACK)
• Settings memory and gradual lightening to reduce eye strain
• Balanced, adjustable headgear with multiple rake positions
• Not respiratory protection, and not for laser or gas welding or cutting

Specifications

• Viewing area: 108 × 74 mm
• Light state: DIN 3
• Cutting range: DIN 4–8
• UV/IR protection: permanent DIN 16
• Dark to light: 0.3–0.9 s, adjustable
• Minimum arc current: 5 A
• Power supply: solar cells and replaceable CR2450 battery
• Operating temperature: −5 to +55 °C
• Storage temperature: −20 to +70 °C
• Weight: 754 g
• Material: high-impact polyamide (nylon)

Package contents

• Parweld XR943H Flip auto-darkening helmet with filter and grinding visor
