Parweld XR943A fresh-air helmet with blower, auto-darkening DIN 4–13

The Parweld XR943A is a powered air system combining a welding and grinding helmet with a flip-up auto-darkening filter (XR1020) and a battery-powered, belt-mounted blower unit. The blower supplies filtered air to the helmet, and the system is approved to respiratory class TH3 P R SL (EN 12941). It suits TIG, MIG/MAG and MMA welding, plasma cutting and grinding where particle protection is needed.

Features

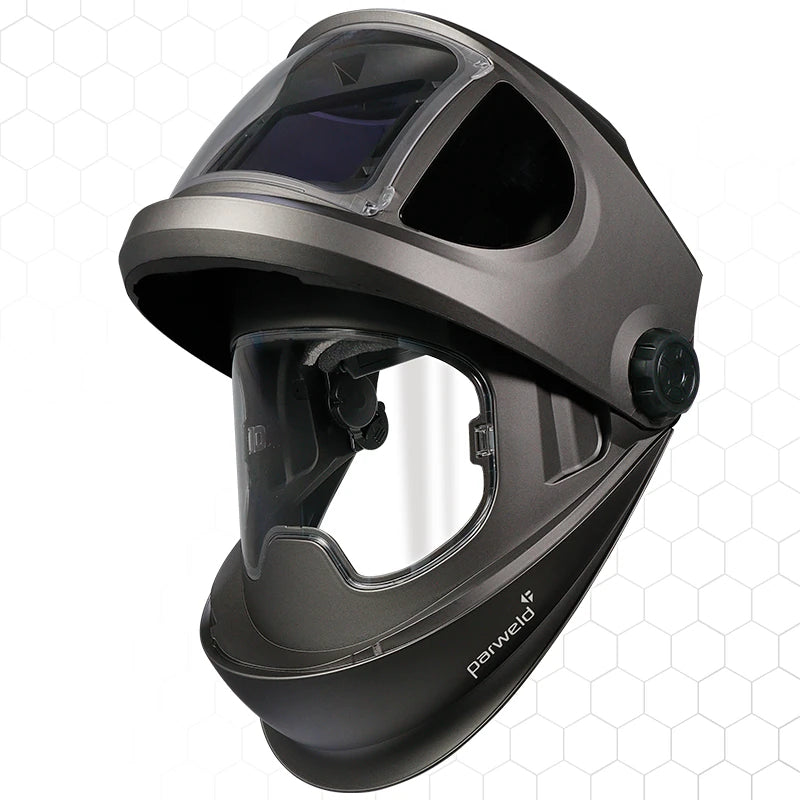

• Flip-up auto-darkening filter: grind and inspect your work through the wide clear visor without removing the helmet
• True Colour auto-darkening filter, optical class 1/1/1/1
• Modes: weld, cut, grind, auto shade and high-speed tack (TACK); settings memory and gradual lightening
• Brushless, quiet blower motor with two airflow settings
• Status display with audible and vibration alarms
• Filtration: P3 particle filter, activated carbon pre-filter and metal spark arrester
• Comfort belt with detachable shoulder straps and removable lithium-ion battery

Specifications

• Respiratory protection: TH3 P R SL, EN 12941; PPE category III
• Airflow: 170 or 220 nl/min
• Run time: approx. 11 h (170 nl/min) or 9 h (220 nl/min) with a new, fully charged battery and new filter at room temperature
• Battery: Li-ion 14.8 V / 2.2 Ah, charging time approx. 2.5 h, over 350 charge cycles
• Noise level: max. 60 dB(A)
• Blower unit weight: under 1.1 kg
• Viewing area: 108 × 74 mm
• Light state: DIN 3
• Cutting range: DIN 4–8
• UV/IR protection: permanent DIN 16
• Dark to light: 0.3–0.9 s, adjustable
• Power supply: solar cells and replaceable CR2450 battery
• Operating temperature: −5 to +55 °C

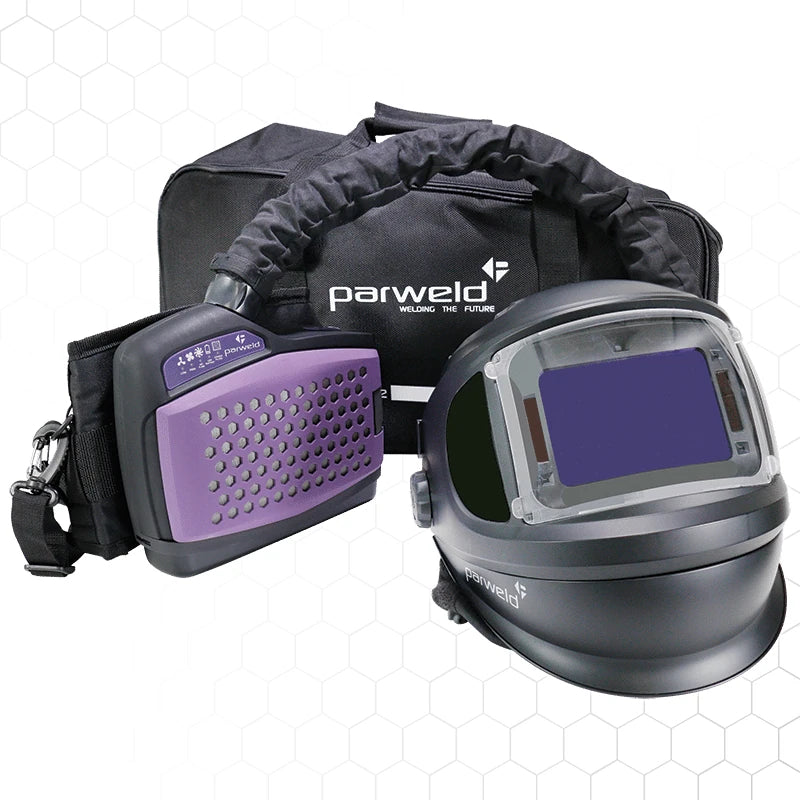

Package contents

• XR943A (XR1020) fresh-air helmet with auto-darkening filter
• Blower unit
• Filters: P3 main filter, pre-filter and spark arrester
• Battery and charger
• Belt and shoulder straps
• Carry bag
