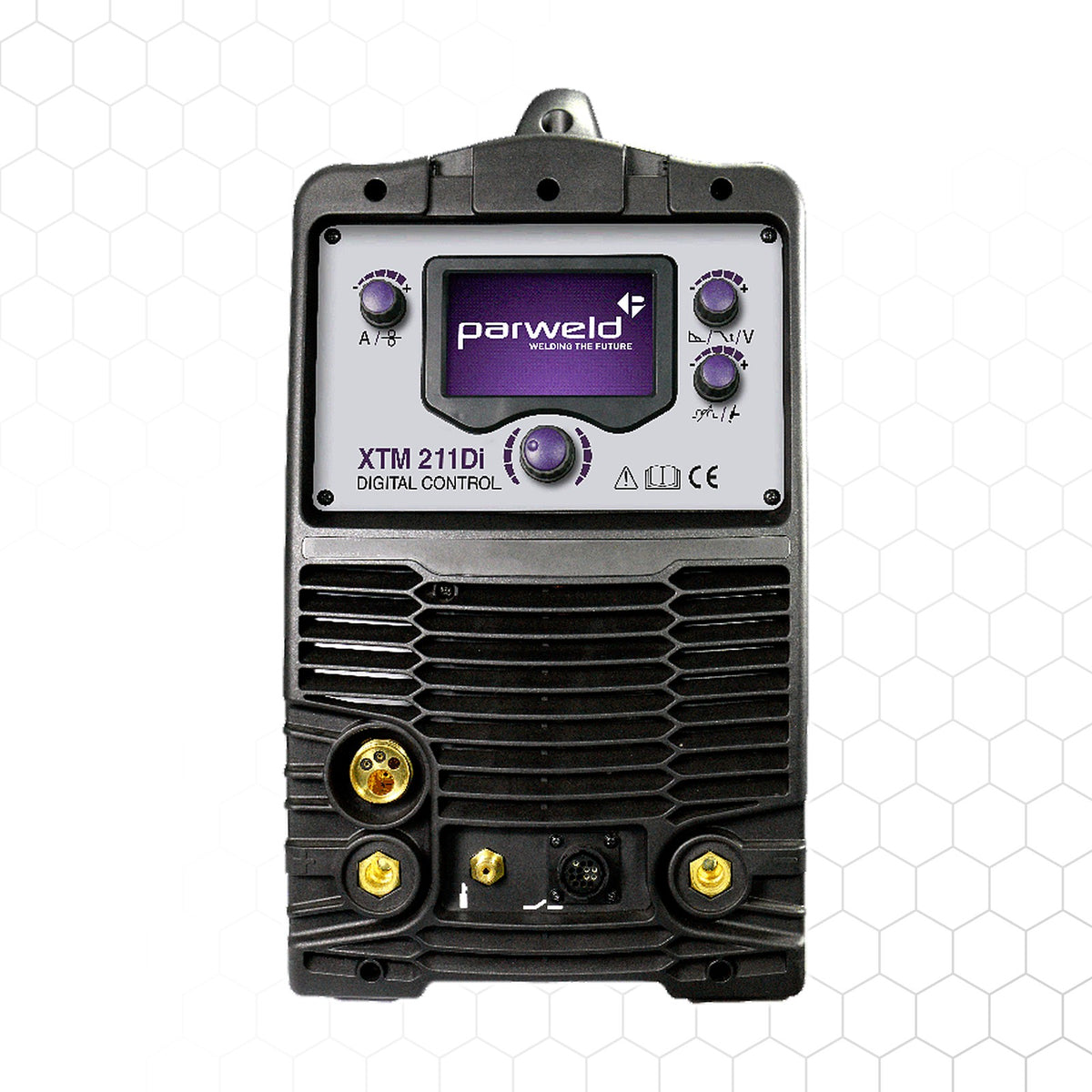

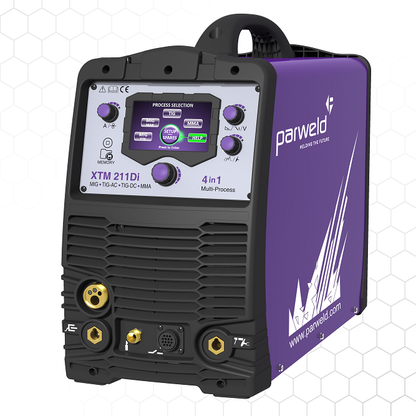

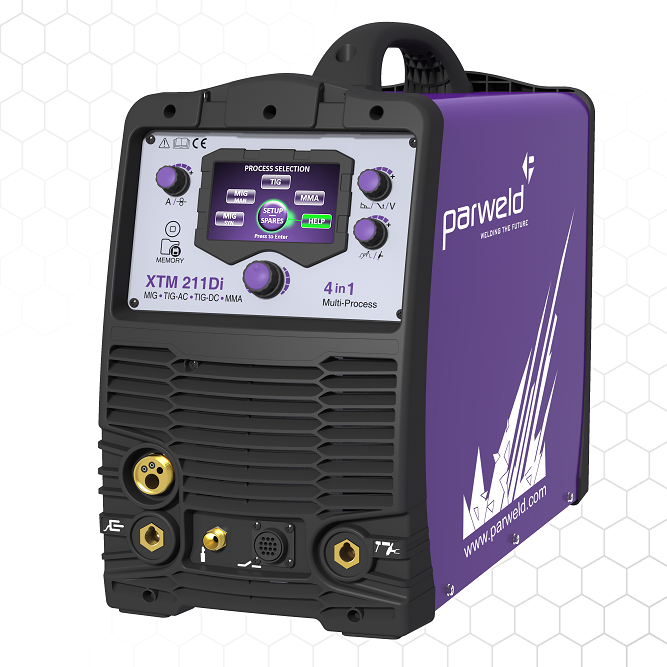

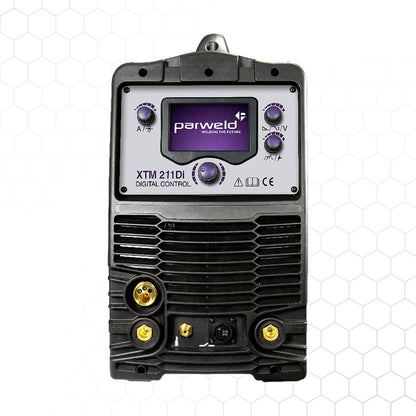

Parweld XTM-211Di MIG/TIG AC/DC multi-process welder, SB-25 torch, WP-17FX TIG torch 4 m and earth cable

The Parweld XTM-211Di is a single-phase multi-process welder for MIG/MAG, DC TIG, AC TIG and MMA (stick) welding. With AC TIG, the same machine welds aluminium as well as steel and stainless steel. It suits workshops that need several welding processes, and pipe work.

Features

• Four processes: MIG/MAG, DC TIG, AC TIG and MMA. Polarity switches automatically, so there is no need to move the leads on the front panel.
• Switch between MIG and TIG with one press of the torch trigger
• Large colour screen with a multi-language digital interface. Rapid synergic set-up for MIG, TIG and MMA.
• OLED display in the MIG torch handle for viewing and adjusting parameters
• HF start and pulse function for TIG welding
• Memory function to save and recall welding programs for all processes

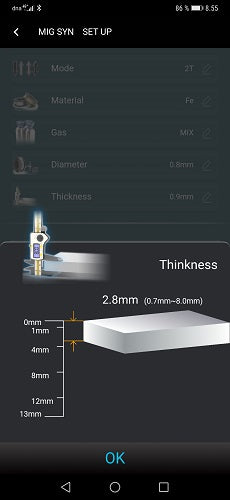

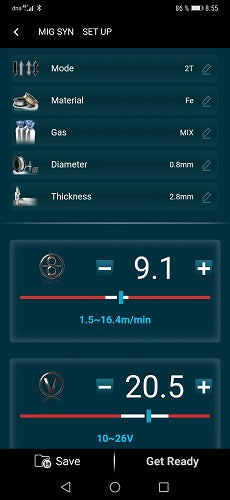

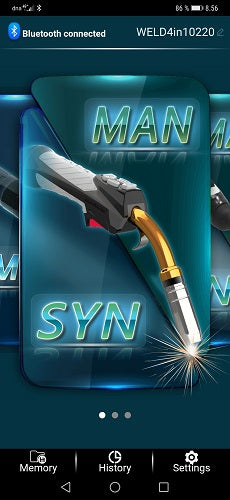

• The machine can also be operated from a phone or tablet with the Parweld mobile app

Specifications

• Input voltage: 230 V or 110 V, single phase (automatic switching)
• Welding current (230 V): MIG 10–200 A, TIG DC/AC 10–200 A, MMA 10–200 A
• Duty cycle (230 V, MIG): 200 A @ 25%, 160 A @ 60%, 140 A @ 100%
• Minimum fuse rating (230 V): 16 A
• Wire diameter: 0.6–1.0 mm
• Wire spool: 5 kg (200 mm) or 15 kg (300 mm)
• Wire drive: 2-roll
• Weight: 27.8 kg
• Dimensions (L × W × H): 615 × 275 × 495 mm
• Enclosure rating: IP23S

Package contents

• Parweld XTM-211Di multi-process welding machine
• SB-25 MIG torch with digital display remote control
• WP-17FX TIG torch, 4 m, with remote control
• Earth cable
• Gas hose
