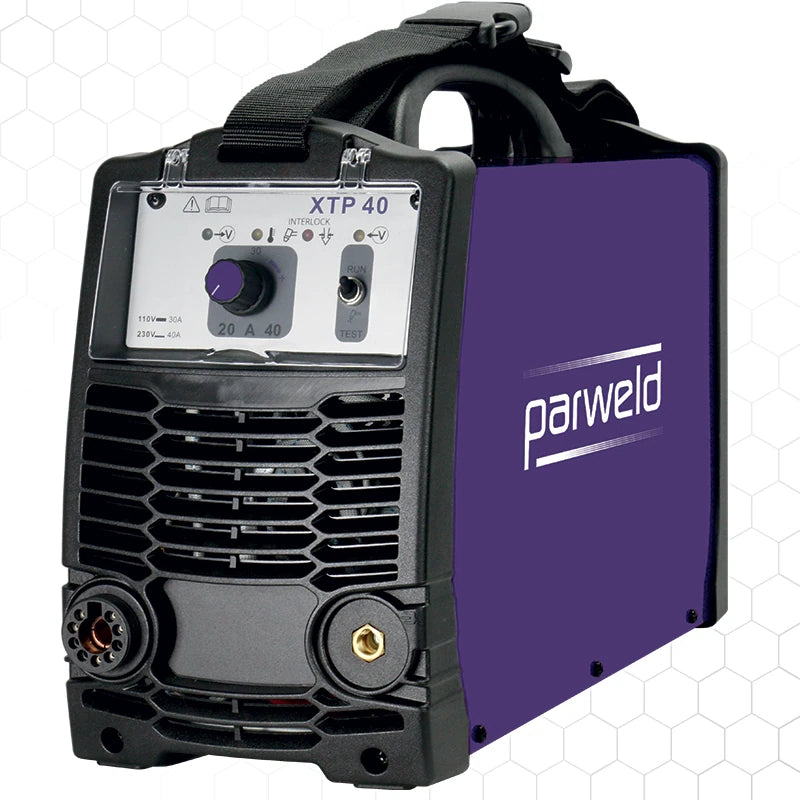

Parweld XTP 40 plasma cutter, 230 V, XT4000 torch 6 m and earth cable 3 m

The Parweld XTP 40 is a light 40 A plasma cutter for single-phase 230 V mains (it also runs on 110 V). It makes severance cuts up to 20 mm. It suits repair and maintenance, farm use, HVAC work and site work.

Features

• Cuts any metal. The output is adjustable and can be fine-tuned to minimise dross on the cut edge.
• The pilot arc re-ignites automatically, making it easy to cut mesh and perforated sheet
• Non-HF ignition reduces the risk of interference with electronic equipment
• Built-in air pressure regulator
• Over-voltage and over-current protection
• Dual voltage 230/110 V with automatic switching. Copes with ±15% mains voltage fluctuation and works with most generators.
• Metal case with carry handle and shoulder strap

Specifications

• Input voltage: 230 V or 110 V, single phase
• Cutting current: up to 40 A (230 V)
• Duty cycle: 40 A @ 40%
• Severance cut: 20 mm
• Compressed air: 5 bar
• Generator size: 5 kVA (with automatic voltage control)
• Weight: 12.6 kg
• Dimensions (L × W × H): 430 × 170 × 300 mm
• Enclosure rating: IP23S

Package contents

• Parweld XTP 40 plasma cutter

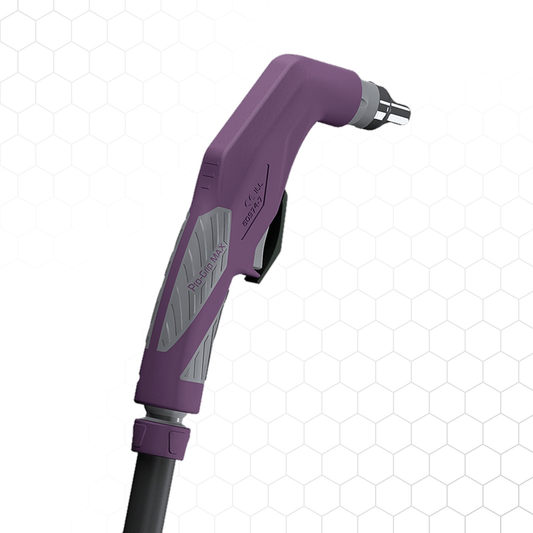

• XT4000 plasma torch, 6 m
• Earth cable, 3 m
• Input cable, 3 m
• Gas hose
