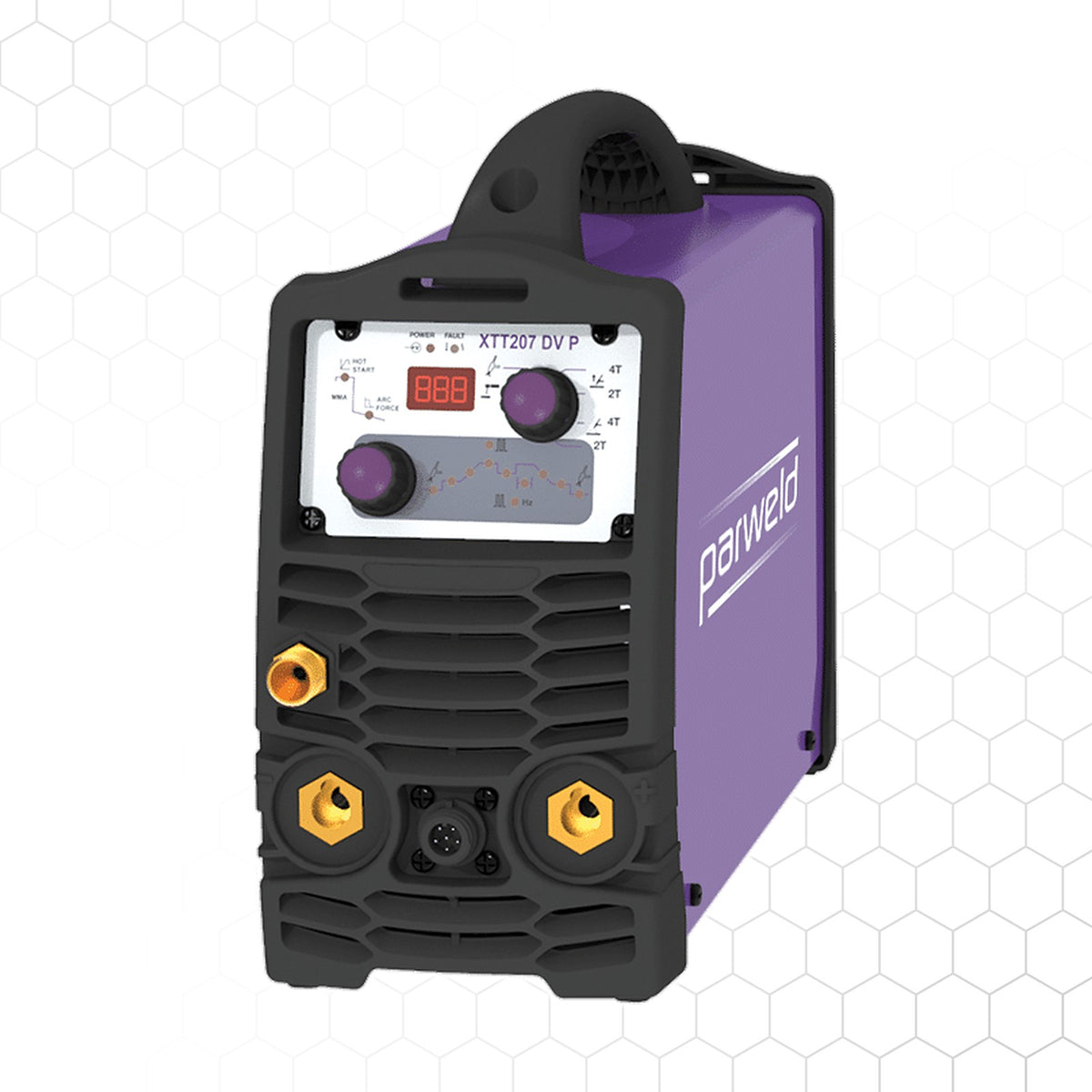

Parweld XTT207DV DC pulse TIG welder, WP-9FX torch 4 m, earth cable 3 m and gas hose

The Parweld XTT207DV is a light, compact DC pulse TIG inverter that also works as an MMA (stick) welder. The DC machine suits TIG welding of alloy and non-alloy steels, stainless steel and titanium. It suits light fabrication, sheet metal work and site use.

Features

• HF start or Lift TIG, both with 2T/4T trigger mode
• Adjustable pulse (0.5–100 Hz) reduces heat input and increases penetration
• Adjustable TIG parameters: pre-gas, start current, up-slope, pulse, down-slope, final current and post-gas
• TIG welds steel and stainless steel up to 6 mm; MMA electrodes up to 4.8 mm
• Control socket for a torch remote or trigger
• 35–50 mm twist-lock welding cable connections
• Metal case with carry handle and shoulder strap. Copes with ±15% mains voltage fluctuation and works with most generators.

Specifications

• Input voltage: 230 V or 110 V, single phase
• Welding current: 5–200 A DC (230 V), 5–160 A DC (110 V)
• Duty cycle: 200 A @ 35% (230 V), 160 A @ 40% (110 V)
• Pulse frequency: 0.5–100 Hz
• Up-slope and down-slope time: 0–5 s
• Weight: 8 kg
• Dimensions (L × W × H): 376 × 136 × 240 mm
• Enclosure rating: IP23S

Package contents

• Parweld XTT207DV TIG welding machine
• WP-9FX TIG torch, 4 m, with remote control
• Earth cable, 3 m
• Gas hose with quick connector

MMA electrode holder lead is not included.
