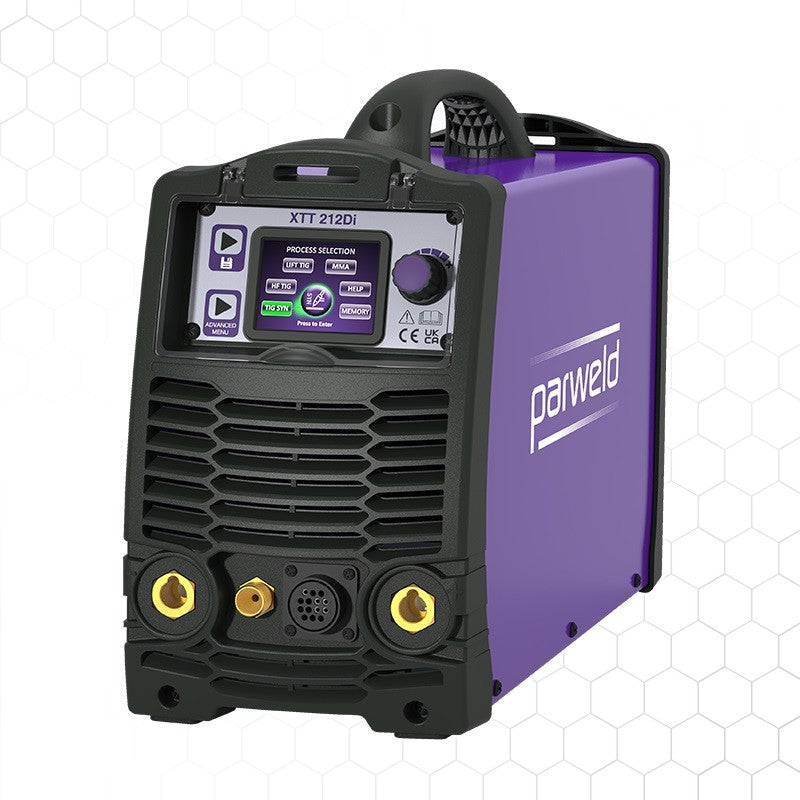

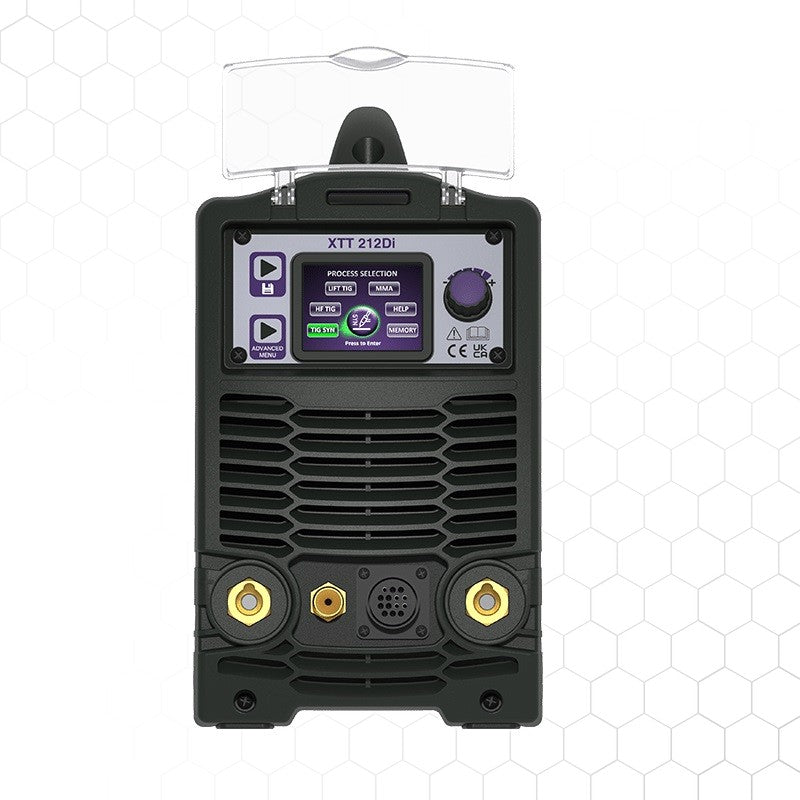

Parweld XTT212DI AC/DC TIG welder, digital display, 4 m torch

The Parweld XTT212Di is a single-phase AC/DC pulse TIG inverter for HF TIG, Lift TIG and MMA (stick) welding. According to Parweld it TIG welds any metal up to 6 mm, and the AC function also welds aluminium. The multi-language digital interface and synergic control in TIG mode speed up set-up on site and in the workshop.

Features

• AC and DC TIG plus MMA; HF start or Lift TIG
• Square wave AC and adjustable AC frequency 50–250 Hz
• Pulse function 0.5–200 Hz for arc control
• Synergic control in TIG mode; advanced settings for each process on the front panel
• Memory for six welding jobs
• 2T/4T trigger latching
• Water cooling available with the XTS 908 attachment; foot control can be connected

Specifications

• Input voltage: 230 V or 110 V, single phase
• Welding current (230 V): 5–200 A DC, 10–200 A AC
• Welding current (110 V): 5–140 A DC, 10–140 A AC
• Duty cycle (230 V, TIG): DC 200 A @ 25%, AC 200 A @ 30%
• Pulse frequency: 0.5–200 Hz
• AC frequency: 50–250 Hz
• Minimum fuse rating (230 V): 16 A
• Generator size: 9 kVA (with automatic voltage control)
• Weight: 12 kg
• Dimensions (L × W × H): 460 × 170 × 320 mm
• Enclosure rating: IP23S

Package contents

• Parweld XTT212Di TIG welding machine
• WP-17FX TIG torch, 4 m, with remote control
• Earth cable
• Gas hose
• Foot control
